D Series

Horizontal Multistage Centrifugal Pump

The D series horizontal multistage centrifugal pump is composed of certain single stage pumps connected in series. With large output water pressure, the centrifugal force is obtained through impeller rotation. When the air is pumped out and the air concentration meets the operation requirement, high vacuum is obtained.

The air suction, compression and exhaust of the mechanical vacuum pump are conducted based on the volume change of the pump cavity. The distinct feature of the horizontal single suction centrifugal pump is that the stage quantity can be adjusted according to practical working pressure.

Applications
Our horizontal multistage centrifugal pump can be applied for transporting clear water or liquid with physicochemical property similar to that of the clear water. There shall be no solid particle, abrasive material or suspended solid containing in the liquid. Particularly, this multistage centrifugal pump can be used for delivering hot water, oil, corrosive liquid or medium containing abrasive material through special employment of material, sealing mode, or cooling system.

D series
This range of product is very widely employed in the drainage system in mines, industries and cities for transporting clear water or liquid with similar physicochemical property to that of water. The liquid temperature shall be no more than 80 ℃. Besides, there shall be no solid particles contained in the medium.

DF series
The DF series horizontal multistage centrifugal pump is particularly suitable for delivering -20 ℃-105 ℃ particle-free corrosive liquid. The product material, seal mode, pump structure, or the motor power can be selected according to medium concentration, specific gravity, operating temperature and inlet pressure.

DY Series
Our product of DY series is engineered for oil and petroleum products with the viscosity no more than 120cSt. No particle shall be contained in the medium. Moreover, the liquid temperature shall be -20℃-105℃.

MD Series
Specially offered for neutral mine water and other similar sewage, our MD series horizontal multistage centrifugal pump can be applied for conveying the medium with the particle content less than 1.5% and particle size no more than 0.5mm. The temperature of the liquid shall between -20℃ and 80℃.

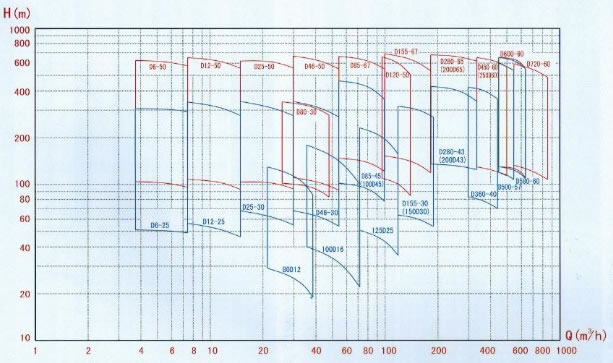

Technical Parameters

Caliber 2- 12 inches (50mm-300mm)
Range of Flow 3.75m3/h-850m3/h
Head 19-816m
