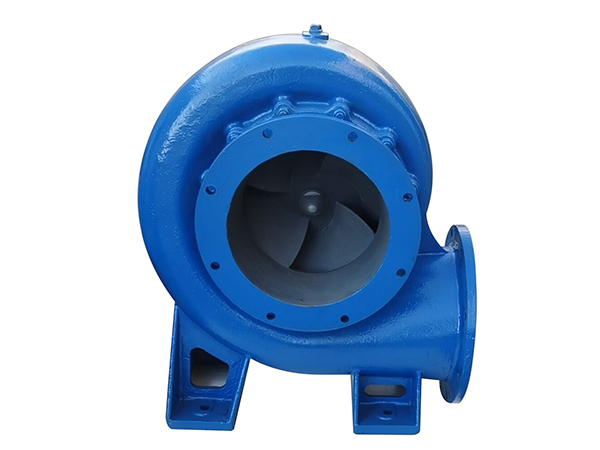

Horizontal Mixed-Flow Pump

The horizontal mixed-flow pump is a kind of shell type single suction pump with one impeller. The reasonable structure makes for reliable operation, convenient maintenance, high efficiency, small volume and light weight.

Applications
This single stage mixed flow pump is applicable for transporting clear water, pulp with the concentration no more than 3%, solution with pH value from 3-10 and fiber length no more than 80mm, as well as other liquid with the physicochemical property similar to that of water. The liquid temperature shall be no more than 50℃.

Our horizontal mixed-flow pump can be widely seen in irrigation, wastewater treatment system and municipal water supply and drainage system. Additionally, our company can also offer low-head mixed-flow pump, which features large flow, low energy consumption and high efficiency. It is particularly suitable for pump station construction and renewal.

Technical Parameters
Model Rotating
Speed
Flow Head Efficiency Power Cavitation Net
Weight
rpm m3/h l/s m % Shaft
Power(kW)
Motor
Power(HP/kW)
m kg
100HW-8S (4HBC-35) 2900 68 19 9.6 80 2.24 4/3 4.0 30
90 25 8.0
108 30 6.0
150HW-5S (6HBC-35) 1450 137 38 6.1 80.5 3.0 5/4 3.0 65
180 50 5.0
216 60 3.7
1850 175 49 10 80. 5 6.3 12/7.5 3.5
230 64 8.2
276 76 6.1
150HW-8S (6HBC-25) 1450 137 38 8.7 82 4.78 8/5.5 2.7 60
180 50 8.0
216 60 6.8
150HW-12S (6HBC-35T) 2900 137 38 15.3 82 7.47 12/11 6.0 60
180 50 12.5
216 60 9.7
200HW-4S (8HBC-40) 1060 300 83 5 81 4.6 8/5.5 4.0
340 95 4
420 117 3
200HW-5S (8HB-50) 1160 250 69 6.7 81.5 6.01 12/7.5 4.0 110
360 100 5
440 122 4
200HW-5 (8HB-50) 1450 240 67 6.8 81.5 6.01 12/7.5 4.0
360 100 5.0
445 124 3.9
200HW-8S (8HBC-35) 1360 250 70 8.5 82 7.9 12/10 4.0
340 95 7.1
405 112 5.3
1450 270 75 9.6 82 9.6 15/11 4.0
360 100 8.0
432 120 6.0
200HW-12S (8HBC-25) 1450 270 75 13.5 83.5 14.68 25/18.5 4.0 105
360 100 12.5
432 120 10.8
250HW-4S (10HBC-40) 980 400 111 4.0 82.5 6.3 12/7.5 4.0 165
450 125 4.2
480 133 3.5
1110 450 125 7.0 84 8.8 15/11 4.0
540 150 5.0
650 180 4.1
250HW-5 (10HBC-50) 1180 440 122 6.8 81 9.1 15/11 4.0 165
540 150 5
660 183 4
250HW-7S (10HBC-30) 870 355 98 6.5 83 7.4 12/11 4.0
400 111 5.5
450 125 5.0
980 400 111 8.0 83 10.5 20/15 4.0
450 125 7.0
500 139 6.3
250HW-8S (10HBC-45) 1100 460 128 9.1 84. 5 13.9 25/18.5 4.0 170
540 150 8
660 183 5
250HW-8 (10HBC-45) 1180 450 125 9 84 14 25/18.5 4.0 170
540 150 8.0
670 186 4.9
250HW-12S (10HBC-25) 1180 500 139 14.6 84 24.4 40/30 4.0 165
600 167 12.5
710 197 9.8
300HW-4S (12HBC-50) 780 650 180 5.4 83. 5 9.4 15/11 4.0
710 197 4
810 225 3
300HW-5S (12HB-45) 870 660 183 5.6 84 12.8 25/18.5 4.0
792 220 5.0
900 250 4
300HW-5 (12HBC-45) 980 650 180 5.5 84 12.8 25/18.5 4.0 195
792 220 5.0
890 247 3.9
300HW-7S (12HBC-40) 730 508 141 4.5 84 7.3 12/11 4.0
585 163 3.9
723 201 2.8
980 680 189 8.0 84 17.7 30/22 4.0
780 216 7.0
910 252 5.0
300HW-8S (12HBC-40T) 970 660 183 9.1 85 20.3 30/22 4.0 200
792 220 8
900 250 6.5
300HW-12 (12HBC-25) 970 670 186 14.4 85 31.8 50/37 4.0 200
792 220 12.5
910 253 10.1
350HW-4S (14HBC-50) 980 900 250 5.1 85 16.6 30/22 4.5 330
1000 278 4.3
1180 328 3.5
350HW-8S (14HBC-40) 730 670 186 5.2 85.5 10.5 20/15 4.5 330
745 207 4.4
819 228 3.7
980 900 250 9.4 85.5 25.5 40/30 4.5
1000 278 8.0
1100 306 6.7
400HW-7S (16HBC-40) 730 1080 300 7.8 86 28.1 40/30 5 555
1260 350 6.8
1368 380 6.2
980 1450 403 14.1 86 66.0 100/75 5.5
1692 470 12.3
1836 510 11.2
400HW-10S (16HBC-30) 730 1098 305 11.5 86 44.5 60/55 5 560
1400 390 10.0
1720 478 7.55
980 1470 410 20.7 86 106 165/110 5.5
1880 520 18.0
2300 640 13.6
500HW-6S (20HBC-40) 580 1690 469 7.6 86 38.9 60/55 5.5 790
1980 550 6.2
2180 606 5.3
730 2127 591 12.0 86 77.3 120/95 6.0
2492 692 9.8
2744 762 8.4
650HW-7S (26HBC-40) 450 3060 850 7.4 90 68 120/90 5.5 1800
3400 944 6.5
3960 1100 5.0
590 4014 1115 12.7 90 152 220/180 6.0
4457 1238 11.2
5193 1442 8.6
650HW-10S (26HBC-30) 490 2658 738 10.9 89 98.6 150/115 5.5 1800
3322 923 9.7
4153 1154 8.6
590 3200 889 15.8 89 171 250/180 5.5
4000 1111 14
5000 1389 10.4
