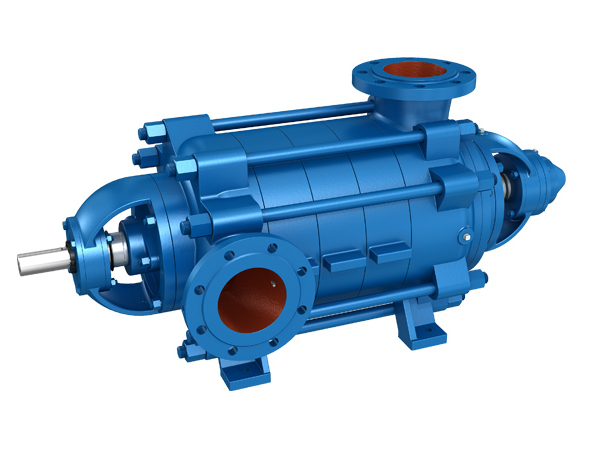

D Series

Horizontal Multistage Centrifugal Pump

D Series Horizontal Multistage Centrifugal Pump D Series Horizontal Multistage Centrifugal Pump D Series Horizontal Multistage Centrifugal Pump D Series Horizontal Multistage Centrifugal Pump D Series Horizontal Multistage Centrifugal Pump D Series Horizontal Multistage Centrifugal Pump

D-series horizontal multi-stage centrifugal pump is produced from national recommend hydraulic model, allowing our pump a high efficiency, energy saving, high adaptability, sound and stable operation, low noise, long service life, easy maintenance and so on.

D-series horizontal multi-stage centrifugal pump is quite suitable for the transportation of clear water (with zero solid particles or suspended substances), or other liquids with similar physical and chemical properties as those of pure water. Meanwhile, when changing pump’s material (or that of overflow parts), sealing method, and adding an extra cooling system, the centrifugal pump could also be used to transfer hot water, oils, as well as corrosive or impure liquids.


Technical Parameters
Range of Inlet/Outlet Dia. 2-12inch(50-300mm)
Range of Flow Rate 3.75- 850m3/h
Range of Head 19- 816m
Max. Pump Stage 14 stages
Range of Temperature Liquid -20℃-150℃
Rotation Speed 1480/1750/2950/3500rpm
Seal Type Mechanical seal or Packing seal
Multistage Pump Type ( 5Types) D series, MD series, DY series, DF series, DG series

Its classification according to different applications
Type D series MD series DY series DF series DG series
Medium Clean water Sewage Oil Corrosive liquid Hot water
Liquid Temperature ≤80℃ -20℃-80℃ -20℃-105℃ -20℃-105℃ -20℃-150℃
Max. Particle Dia. 0 0.5mm 0 0 0
Viscosity 0 0 120cSt 0 0

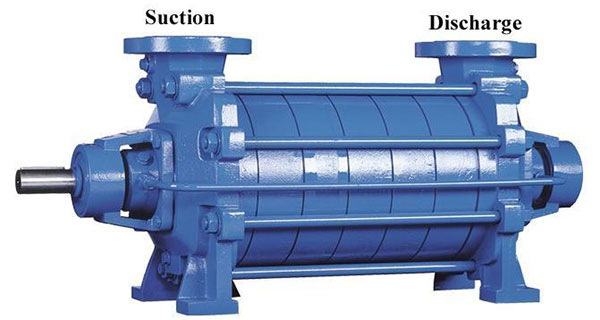

Suction/Discharge Direction D Series Horizontal Multistage Centrifugal Pump D Series Horizontal Multistage Centrifugal Pump

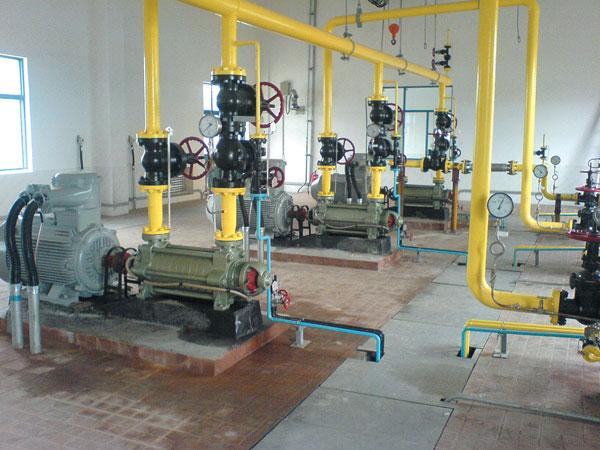

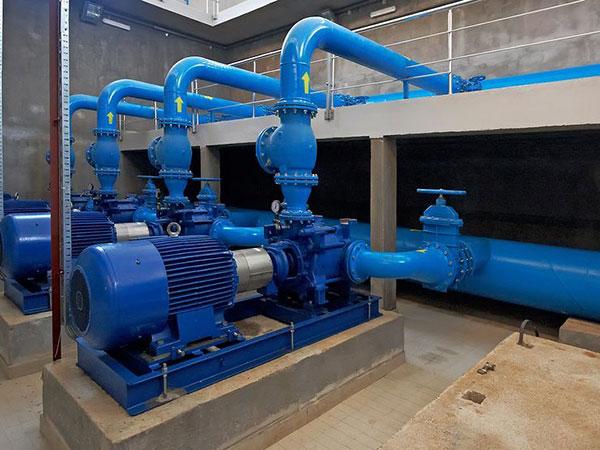

Application

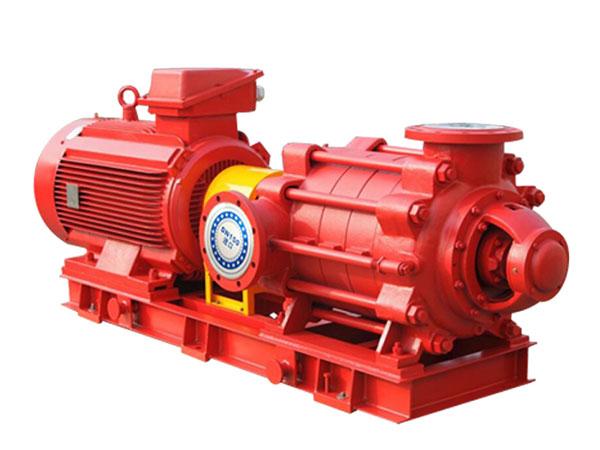

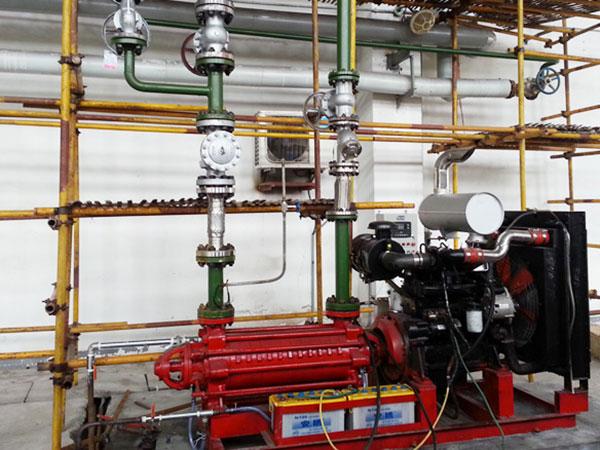

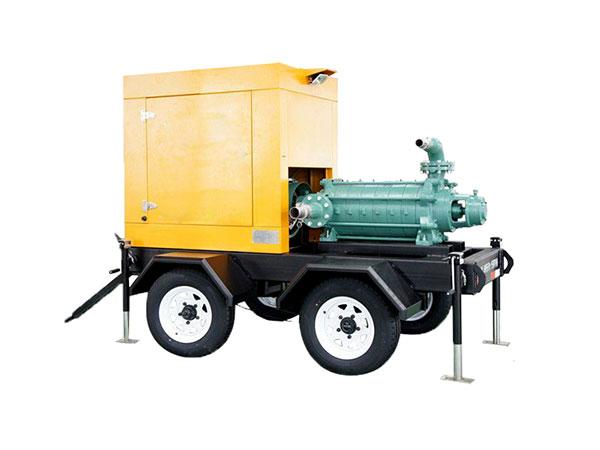

  • Fire Fighting Fire Fighting

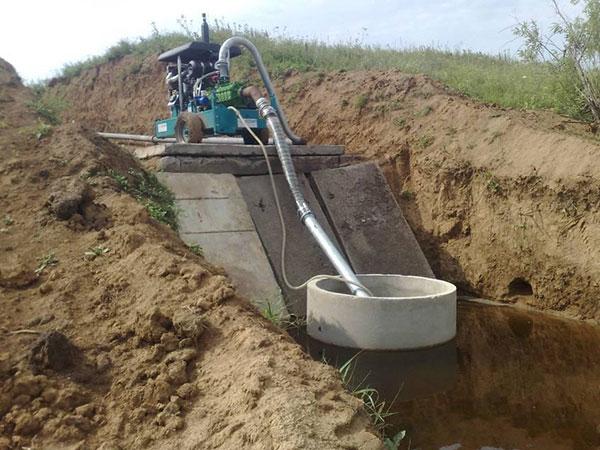

  • Agriculture Irrigation Agriculture Irrigation

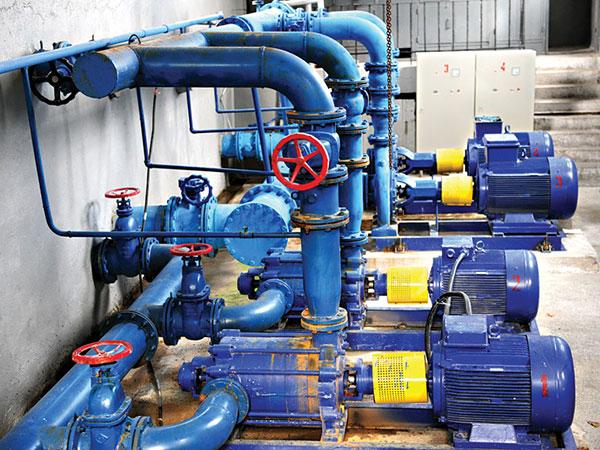

  • Circulation Cooling System Circulation Cooling System
  • Chemical IndustryChemical Industry
  • Hot Water transferHot Water transfer

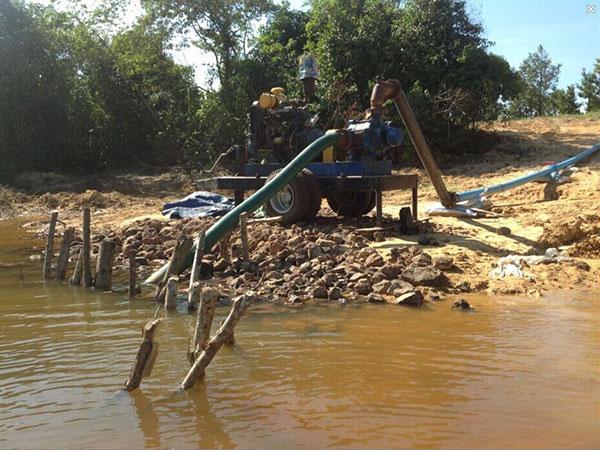

  • Mining dewateringMining dewatering
